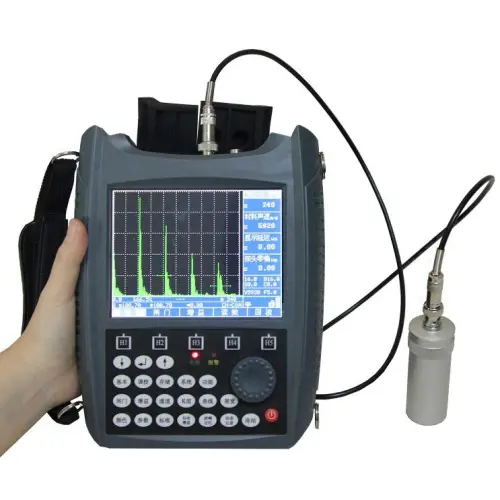

Ultrasonic Flaw Detector

The Ultrasonic Flaw Detector is an essential instrument in the field of Non-Destructive Testing (NDT), designed to identify internal defects without causing any damage to the material. It can quickly and accurately detect cracks, voids, porosity, or inclusions in metals, plastics, and composite materials, as well as perform precise thickness measurements. This makes it a crucial tool for industries with high safety and precision requirements, including aerospace, manufacturing, and automotive, ensuring structural integrity and product quality.

Working Principle of Ultrasonic Flaw Detector

1. High-Frequency Ultrasonic Wave Emission
   The transducer sends high-frequency ultrasonic waves into the material.

2. Defect Reflection
   When the waves encounter discontinuities such as cracks, voids, or inclusions, echoes are reflected back.

3. Signal Analysis
   The detector receives the echoes and analyzes their intensity, timing, and characteristics to determine the type, location, and size of the defect, providing real-time, accurate results.

Key Features of Ultrasonic Flaw Detector

• Defect Detection: Identify cracks, voids, porosity, and inclusions

• Weld Inspection: Detect hidden cracks or welding defects

• Thickness Measurement: Precise evaluation of pipelines, tanks, and layered structures

• Material Assessment: Evaluate the integrity of metals, plastics, and composites

Applications of Ultrasonic Flaw Detector

• Aerospace: Aircraft structural components, engine blades

• Manufacturing: Quality control of metal parts and plastic products

• Automotive: Body panels, chassis, and weld inspection

• Pipelines & Tanks: Wall thickness measurement and corrosion monitoring

• Research & Laboratories: Material performance analysis and testing

Advantages of Ultrasonic Flaw Detector

1. High Accuracy: Detects even minute cracks and internal defects

2. Fast & Reliable: Provides real-time feedback for efficient inspection

3. Non-Destructive: Preserves material integrity while testing

4. Versatile: Suitable for metals, plastics, and composite materials

5. User-Friendly: Intuitive interface, ideal for both field and lab use

If you would like more information about this product, please feel free to contact us. Recommend other popular products for you.: Flaw Detectors Wholesale
