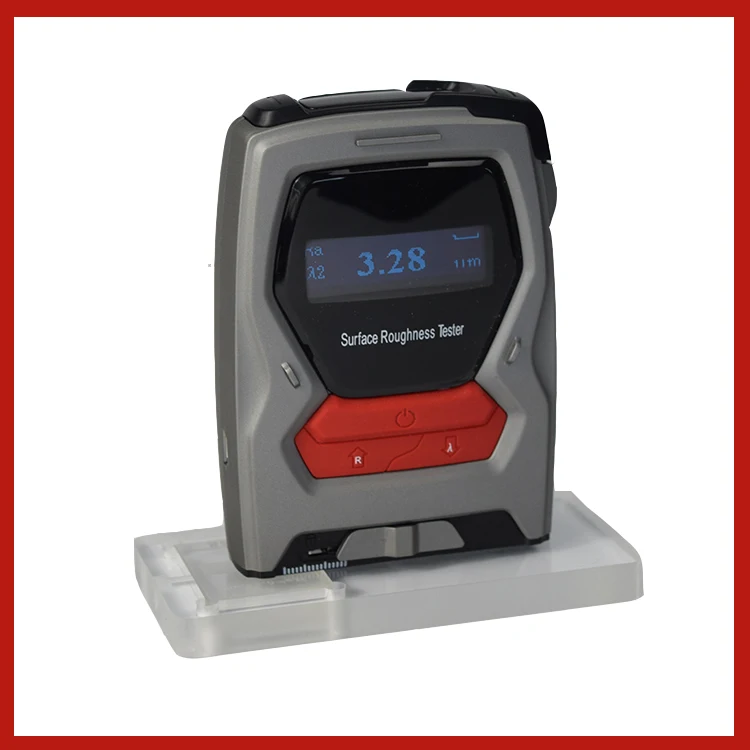

What is the APPLICATION fields of Surface Roughness Tester ? Surface Roughness Tester is a high accuracy instrument for measuring surface roughness. It can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc. It allows surface roughness measurement both on metal and non-metal workpieces. especially for measurement on large and heavy workpiece, assembly line, on site. It is suitable for machining and manufacturing, quality control, inspection departments. It is a Non Destructive Testing instrument, damage won’t caused to testing piece. Industry segmentation of roughness meter applications: 1. Mechanical parts processing and transmission equipment Mechanical parts include: bearings, fasteners, stamped parts, threaded bolts, gears and racks, cam systems, couplings, clutches, hydraulic tools, reducers, micro special motors, and speed regulating motors. 2. Metal processing equipment and machine tool accessories, functional components Metal processing equipment includes: lathes, milling machines, drilling machines, grinders, punch presses, sawing machines, electric discharge machining machines, wire cutting machines, laser processing machines, chamfering machines, rapid prototyping machines, horizontal axis short tables, CNC strong machines, specialized forming series, automatic tapping machines, drilling and tapping composite machines, diffraction mills, engraving machines, testing machines, and specialized testing machines. 3. Process equipment Hard alloy cutting tools, gear machining tools, thread machining tools, cutting tool systems, ceramic cutting tools, grinding tools, grinding tools, wear-resistant parts, fixtures, pneumatic fixtures, hydraulic fixtures, mold standard parts, mold materials, electric/pneumatic tools 4. Hand tools for automobile manufacturing and spare parts processing. 5. Metallurgical smelting, rolling and forging equipment 6. General Machinery and Metal Forming Equipment Lifting equipment, air compressors, valves, pumps, fans, refrigeration equipment, wire rolling machines, cold rolling mills, marking machines, riveting machines, wire drawing machines, metal products. 7. Surface engineering treatment Cold rolled thin plates, tin plated raw plates, aluminum alloy profiles, stainless steel plates, cold rolled workpieces, rolling rolls (made into copper and aluminum sheets), cold hard cast iron mirror rolls, and rolling rolls. 8. Mold casting, precision manufacturing Plastic molds, stamping molds, cover molds, die-casting molds, melting equipment, casting equipment, iron and aluminum castings, non-ferrous metal sand castings, carbon steel castings, stainless steel castings, alloy steel castings, precision castings. 9. Pneumatic and hydraulic components and pressure vessels
Beijing Cap High Technology Co., Ltd.

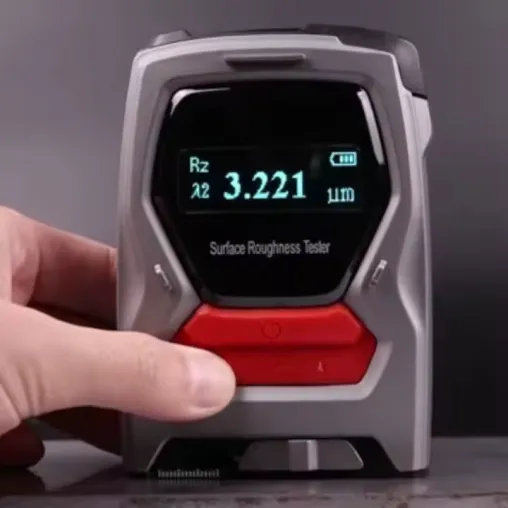

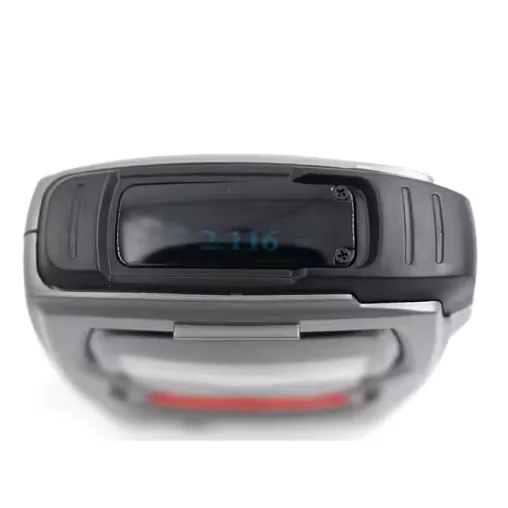

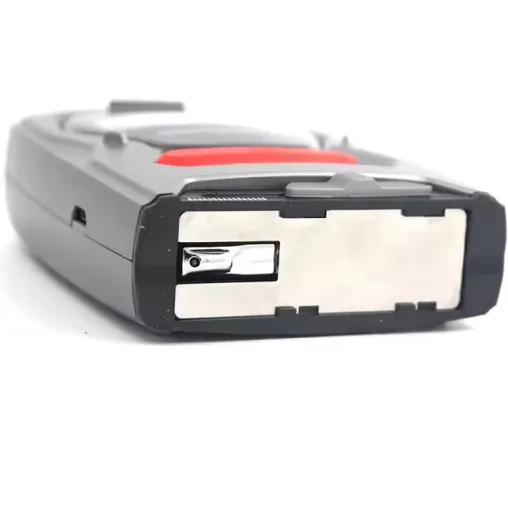

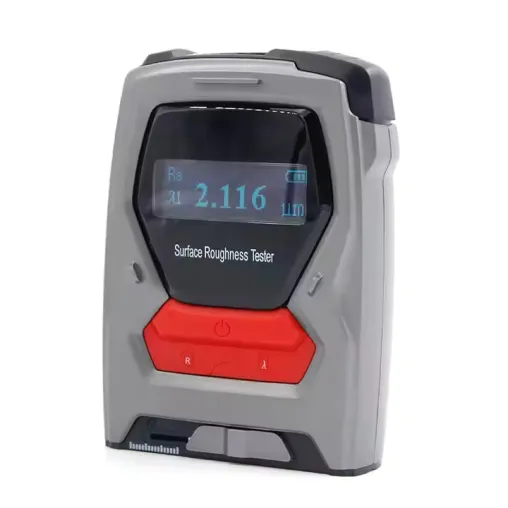

Advanced Roughness tester ART110
Measurement parameters：Ra,Rz,Rq,Rt
Measurement range(μm)：Ra, Rq: 0.05 ~ 10.0; Rz, Rt: 0.1 ~ 60
Sampling length(mm)：0.25 , 0.80 , 2.5
Evaluation length(mm)：1.25 , 4.0 , 5.0
Stroke length(mm)：6
resolution ratio：0.001μm
Battery：3.7V lithium ion battery
Product Description
|
Technical Parameter |
|
|
Measurement parameters |
Ra、Rz、Rq、Rt |
|
Measurement range（μm） |
Ra、 Rq： 0.05 ~ 10.0; Rz、 Rt： 0.1 ~ 50 |
|
Sampling length（mm） |
0.25 ， 0.80 ， 2.5 |
|
Stroke length（mm） |
6 |
|
Indicating value resolution ratio |
0.001μm |
|
Indication error |
±15% |
|
Indication value variability |
<12% |
|
Needle tip arc radius |
10 μm±1μm |
|
Static measuring force of stylus |
≤ 0.5N |
|
Battery |
3.7V lithium ion battery |
|
Overall dimension |
110 mm×81mm×32 mm |
|
Weight |
150g |
|

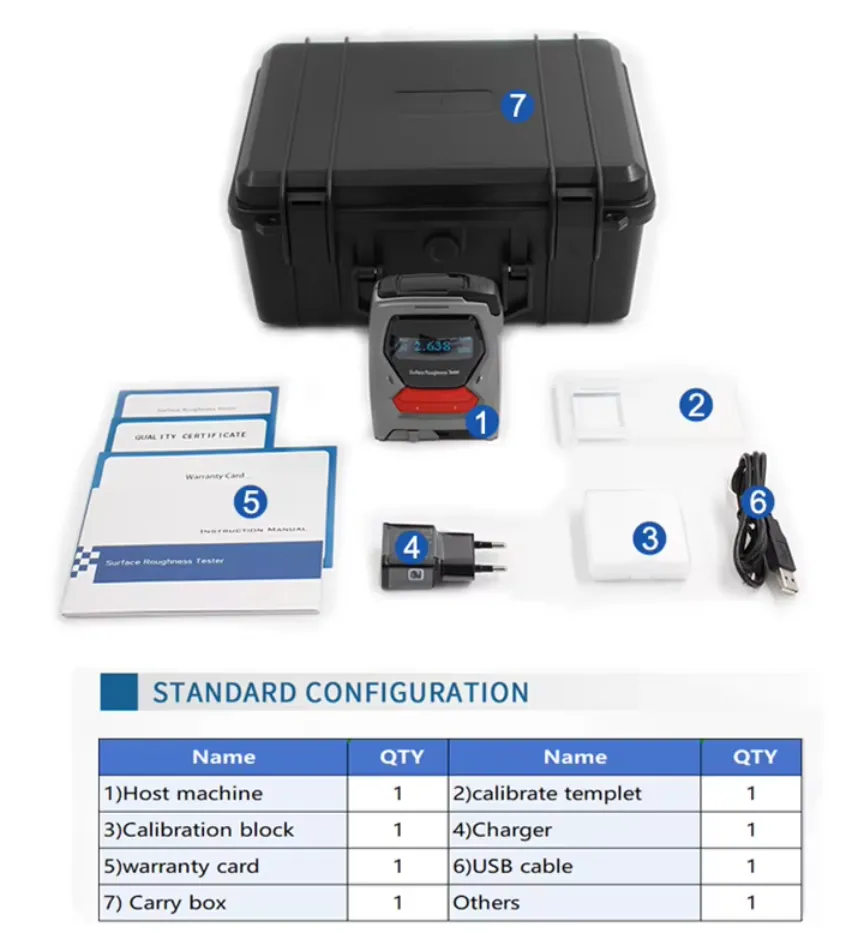

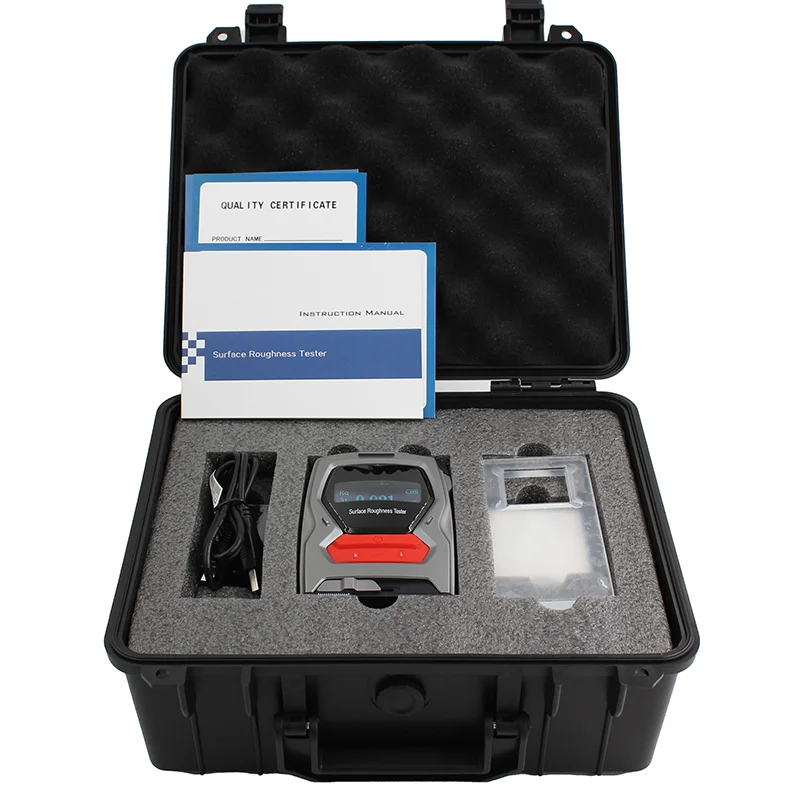

Standard Configuration |
|||
|
Name |
Quantity |
Name |
Quantity |
|
Host |
1 |
Standard Template |
1 |
|
The Power Adapter |
1 |
USB Line |
1 |
|
Instructions |
1 |
Warranty Card |
1 |
|
Certificate |
1 |
Packing List |
1 |
-
1. Manufacture of cars and spare parts
2. Manufacture of mechanical parts and gearing
3. Facilities for metal processing and accessories and functional parts of lathe
4. Equipments of technics
5. Universal machine and metal molding equipment,
Cane, air presser, valve, pump, fan, cooler, cool rolling mill, rivet machine, metallic products.
6. Treatment of the surface
-
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can alsrdelivery to your company by express
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage tous before delivery.
Q:What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paicrepair or service.Response within 24 hours for any problems. Overseas traininginstallation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 2-5 working days afterreceived the payment.We can also accept the urgent order for prompt shipment.Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union and we suggest you company to pay onlineby Alibaba by credit card and trade assurance.
