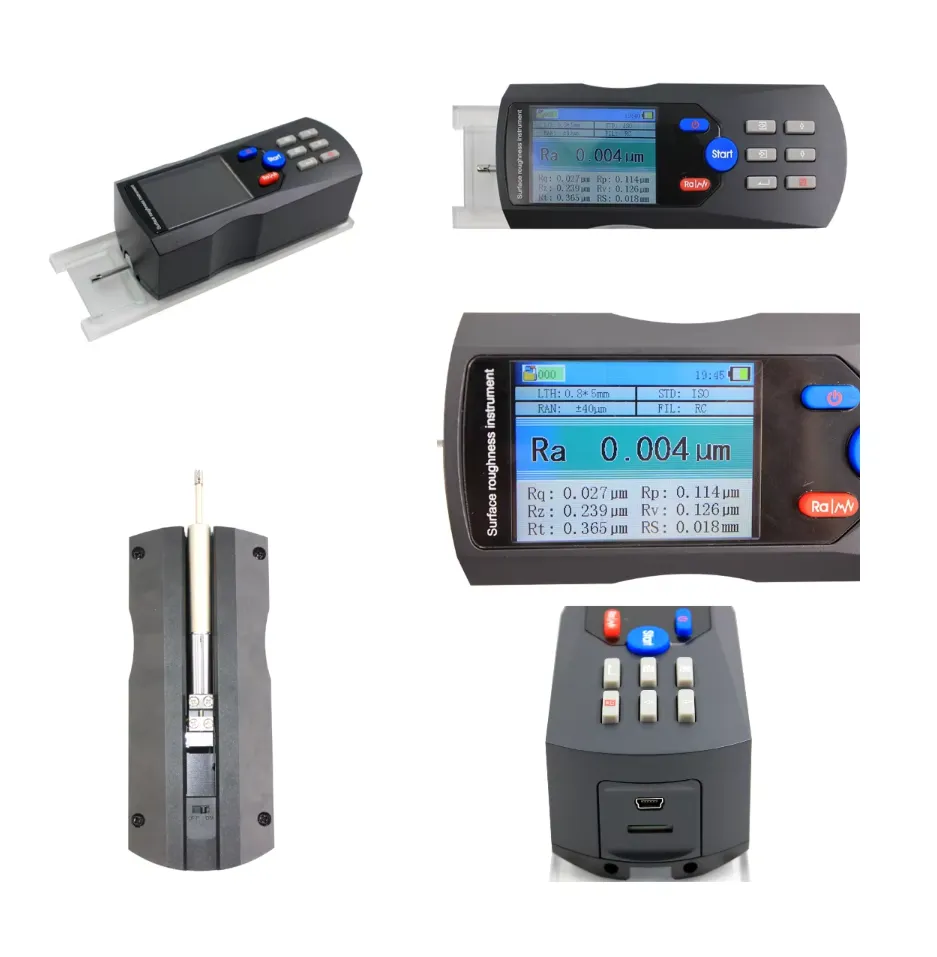

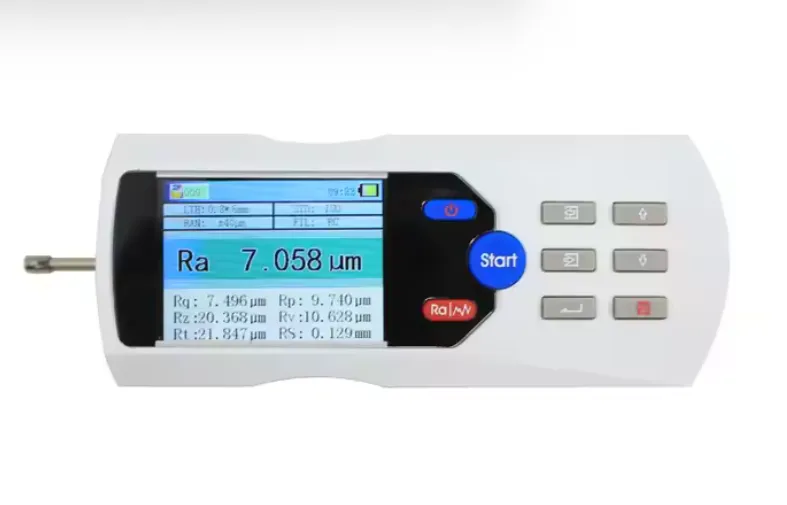

Advanced Roughness tester ART210

1.We have independent researched and developed the whole series production
of sensors.The surface sensor is designed with annular guide head. The sensors
can measure the complex condition of work piece surface.
2.We can customize special sensor according to user needs.
3.Later we can develop sensors that STYLUS radius reached 2μm.
4.Optimized the design of the internal structure to improve the sta

Inquire Now Next Product

Product Description

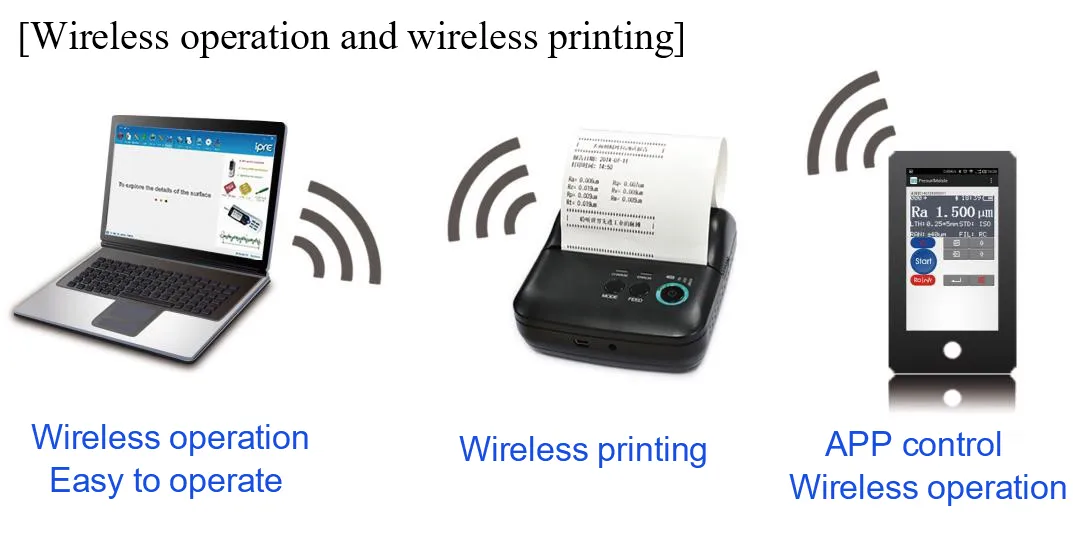

Can be Operated by Mobile phone with APP , easy operating avoid touch key shaking on the tester

Specifications：

Item	Description
Principle	Electric Inductor Type
Range	160um
Stylus Radius	5um
Stylus Material	Diamond
Contact Force	4Mn(0.4gf)
Stylus Angle	90°
GUIDE VERTICAL RADIUS SPECIFICATION	45mm

Main Unit

Item	Description
Max.Drive Travel Length	17.5mm/0.7inch
Error	<±10%
Result Variation	< 6%
Measuring Profile	Roughness，Waviness，Primitive Profile
Parameters	Ra(0.005um~16um),Rz(0.02um~160um) Rq,Rt,Rp,Rv,R3z,R3y,RzJIS,Rsk,Rku,Rsm,Rmr
Filter	RC,PCRC,Gauss,ISO13565
Sampling Length (L)	0.25mm,0.8mm,2.5mm,8mm
Evaluation Length (L)	（1-5）I
Data Storage Capacity	2M+2G Byte
Communication/Interface	USB2.0
Power	Built-in Li-ion Battery, vUSB charging
Dimensions	140mm55mm47mm
Size	400g

Standard Delivery:

Product name	quantity	Product name	quantity
host	1	RS100 standard sensor	1
Multi-cut boilerplate	1	Power adapter	1
Sensor housing	1	bracket	1
Test the pad	1	U disk (with software)	1
Instructions	1	Packing slip	1
Certificate	1	Warranty card	1

Optional accessories：

name	Model	name	Model
Standard sensors	TS100	Curved sensors	TS110
Small hole sensor	TS120	Trench sensor	TS130
Deep groove sensor	TS131	PC synchronous operation software	Presurf-10
Measurement platform	PRTA620	Wireless printers	PRT100、PRT200、PRT300

RS100 standard sensor can used to measure plane, cylindrical surface roughness.
Also can used to measure the hole surface that hole diameter is larger than 5mm
the maximum depth is less than 22mm.

RS110 surface sensor can used to measure the surface roughness of workpiece
that curvature radius of concave convex surface larger than 3mm. Also can used
to measure the planar, cylindrical used with platform.

RS130 Deep groove sensor can used to measure the deep groove that the width
is larger than 2mm, the depth is less than 3mm, or the surface roughness of steps
that height less than 3mm. Also can used to measure the planar, cylindrical used
with platform.

RS131 Deep groove sensor can used to measure the deep groove that the width
is larger than 3mm, the depth is less than 10mm, or the surface roughness of
steps that height less than 10mm. Also can used to measure the planar,
cylindrical used with platform.
